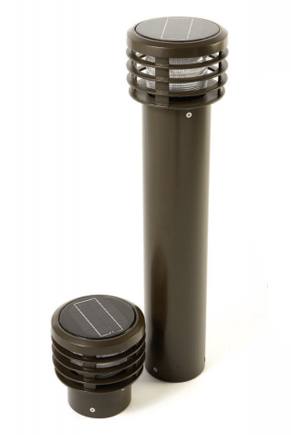

Lunasol M1 LED Bollard

  • Product Code: Lunasol M1
  • Quantity
    Where Are the Prices?

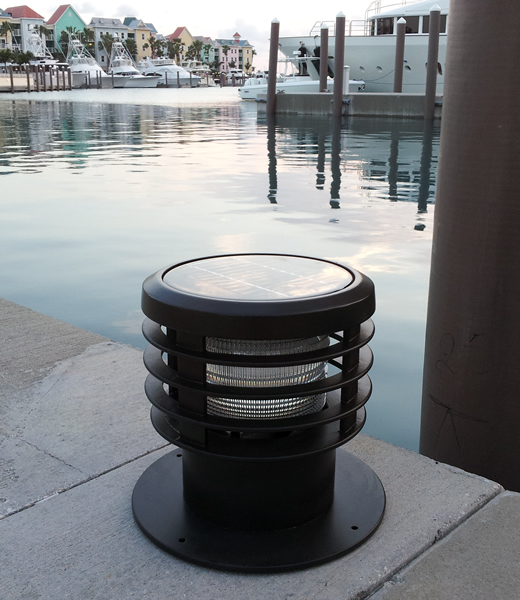

Lunasol M1 LED Bollard


The Lunasol M1 solar powered LED bollard is an ideal choice for low levelarchitectural, commercial way finding, and landscaping lighting applications.Visual appeal combined with high quality construction and unequaled solarpower performance make the Lunasol M1 Solar LED Bollard an excellent fitwhere quality low level lighting is required.

Utilizing solar power and LED lighting the Lunasol M1 Solar LED bollards are fully selfcontained and offer significant benefits over typical wired bollards:

  • Low installed cost and minimal site impact with no trenching, cabling or wiring
  • Minimal ongoing costs with no electrical bills or bulbs to change
  • Immune from power outages
  • Provide a visibly green statement without recurring carbon emissions

The performance of the Lunasol M1 Solar LED Bollard is maximized through theuse of proprietary Energy Management System (EMS) technology that allows theluminaire to function in harmony with its environment.

The EMS ensures that regardless of low-solar weather patterns or unusual chargingconditions such as shading, the bollard continues to provide useable light thatenhances the appeal and safety of the night time environment.

The Lunasol M1 Bollard may contribute to the achievement of the following LEED credits:

  • SS Credit 8: Light Pollution Reduction
  • EA Credit 1: Optimize Energy Performance
  • EA Credit 2: On-Site Renewable Energy
  • MR Credit 4: Recycled Content


Solar Module:
High impact, UV resistant encapsulation
High efficiency mono-crystalline cells
Fully integrated into bollard housing
Used for day/night detection (no photocell required)
Solar Lighting Controller (SLC):
High efficiency Maximum Power Point Tracking (MPPT) charge controller
Microcontroller based system
Includes high efficiency LED driver
Integrated into bollard housing
Automatically manages lighting performance based on environmental conditions and lighting requirements
Patent pending
High performance Lithium (LiFePO4)
Exceptional 8 – 10 year life cycle
High temperature tolerance
Contained within bollard post
Designed for easy battery changes when required
LEDs and Optics:
High output Cree LEDs
50,000 hour L70 lifetime
Warm (3000K) and neutral (4500K) white color temperatures available
Omni-directional light output with Fresnel lens
Typical lumen output of 50 lumens
Mechanical Construction:
Cast, low copper aluminum housing
Extruded, low copper aluminum post
Stainless fasteners
Architectural grade, super durable, TGIC powder coat
Factory Set Lighting Profiles:
On at dusk, off at dawn
On at dusk, turn off after 6 hours
On at dusk, dim to 30% after 6 hours
On at dusk, off after 5 hours, on 1 hour before dawn
On at dusk, dim to 30% after 5 hours, on for 1 hour before dawn

Order Matrix

Series M1

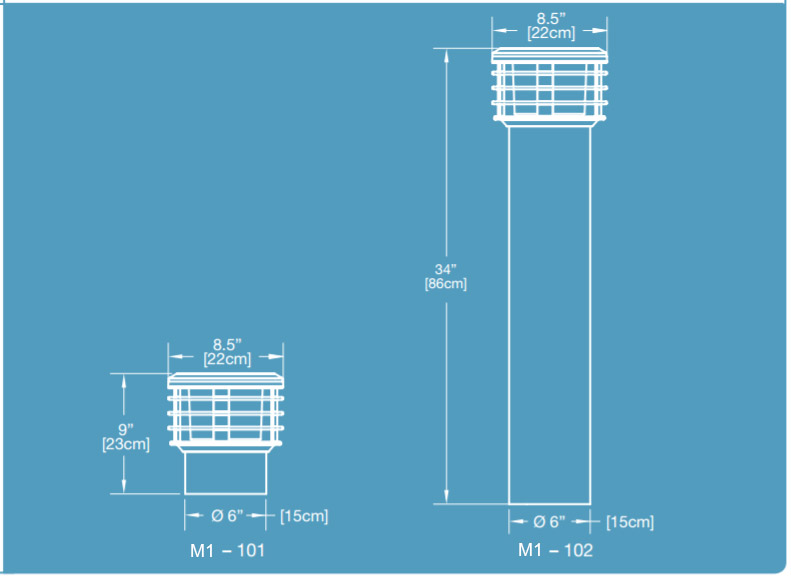

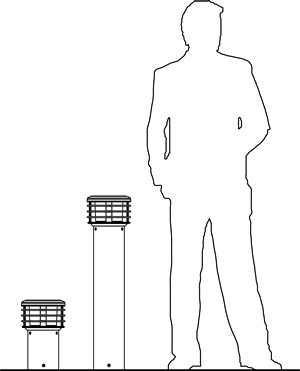

Height 101 - 9”
102 - 34”
Finish BK - Black
BZ - Bronze
SV - Silver
WH - White
CC - Custom
Distribution SYM- Symmetrical
LED Color 30K - 3000K
43K - 4300K
55K - 5500K
Lighting Profile 00 - Dusk till dawn
01 - Dark +6 hours then off
02 - Dark +6 hours then 30%
03 - Dark +5 hours, off, Dawn -1 hour
04 - Dark +5 hours, 30%, Dawn -1 hour
Options WOB- Ship Without Battery
SEC - Security Fasteners



View Brochure

Lunasol M1 LED Bollard

Additional Images

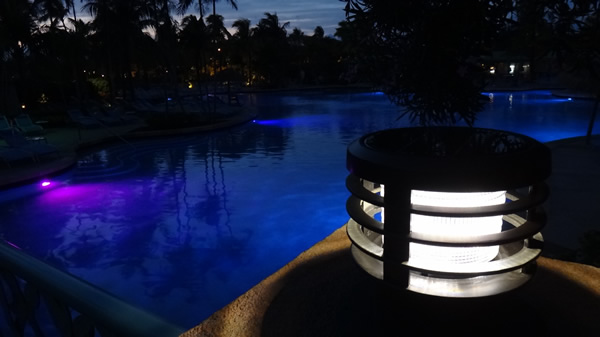

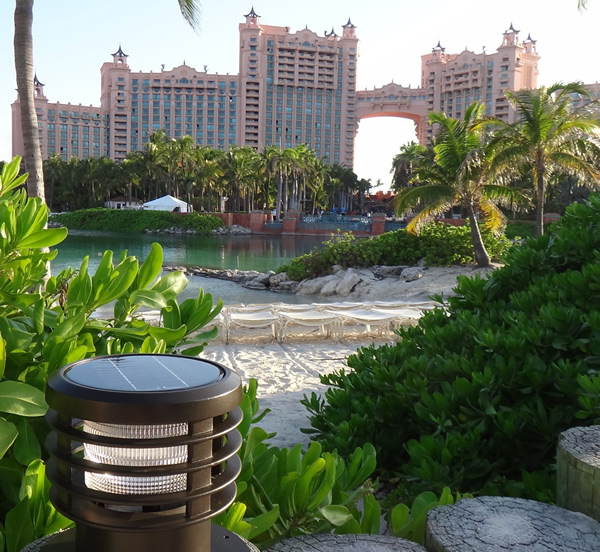

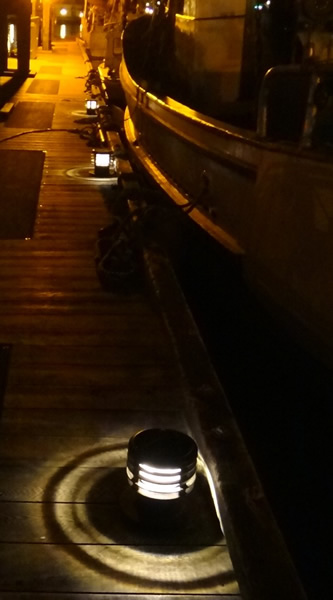

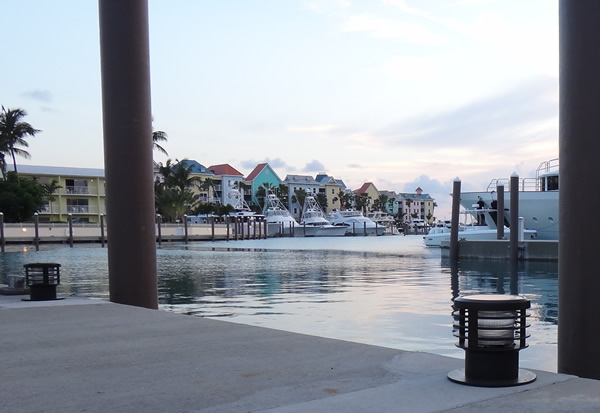

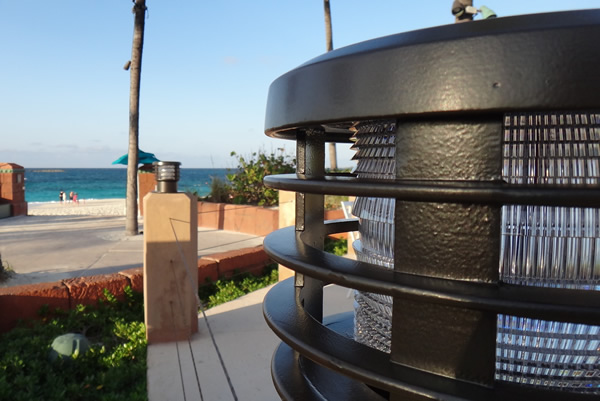

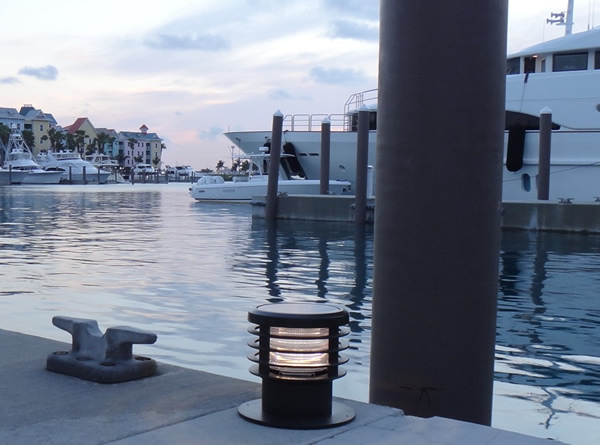

Lunasol M1 LED BollardLunasol M1 LED BollardLunasol M1 LED Bollard
Lunasol M1 LED BollardLunasol M1 LED BollardLunasol M1 LED Bollard
Lunasol M1 LED BollardLunasol M1 LED BollardLunasol M1 LED Bollard
